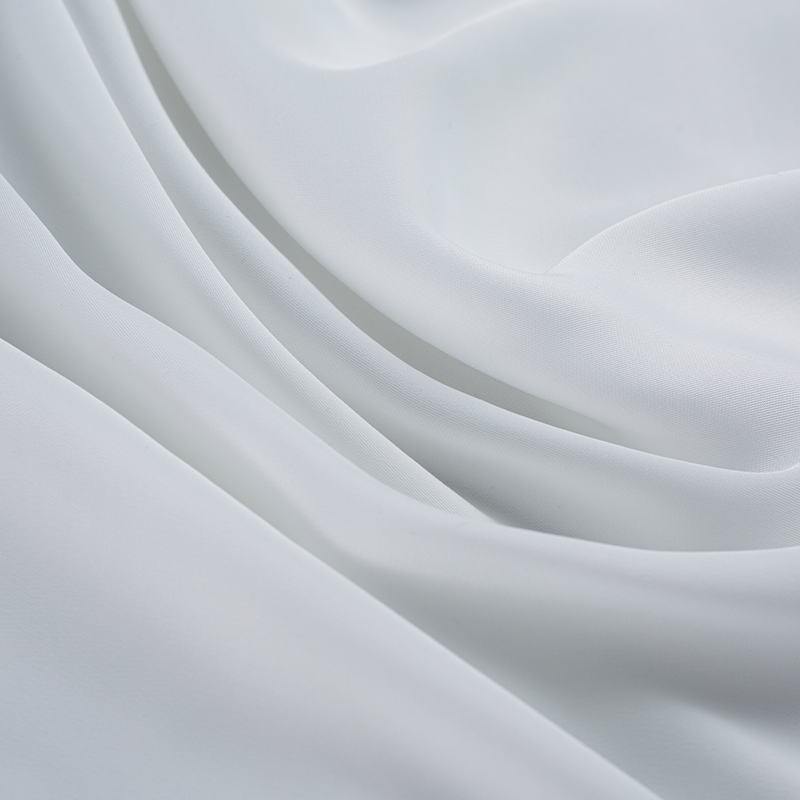

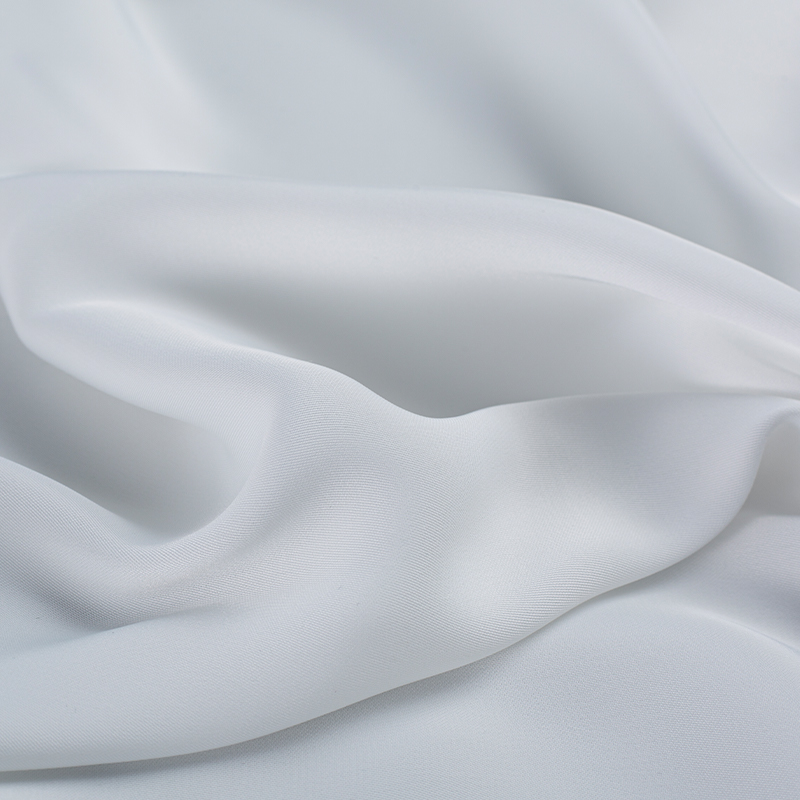

Custom HY455 140GSM 100%P Composite Yarn Double-Face Satin Fabric
TECHNICAL DATA SHEET
HY455 140GSM 100%P Composite Yarn Double-Face Satin Fabric
Engineered double-face satin structure with integrated elasticity system
Yarn System
75D*20D / FDY + 26D POY
FDY continuous filament + partially oriented stretch yarn composite
Density
120 x 48 ends/picks
Finished product density specification
Weight
140 g/m² ±5%
GSM tolerance within industry standard
Composition
100% Polyester
Composite yarn construction
Width
150 cm / 59 inches
Finished usable width
Weave Structure
Double-Face Satin
Both sides present satin finish
01
CONSTRUCTION ANALYSIS
FDY Component
75D+20D fully drawn yarn provides surface smoothness, controlled luster, and structural stability. The filament continuity eliminates surface fuzz, creating the clean satin base.
POY Component
26D partially oriented stretch yarn introduces two-way elasticity. The latent crimp activation during finishing generates controlled stretch recovery, enabling four-way movement without dimensional loss.
Composite Integration
The interlacing of FDY and POY at the yarn formation stage creates a bi-component effect. Each yarn path carries both aesthetic and mechanical functions, eliminating the need for separate elastic inserts.
02
DUAL-SURFACE PROPERTIES
Face Side
Satin weave with float length of 4-5 yarns. The long float structure reflects light directionally, producing a controlled pearlescent sheen. Surface friction coefficient measured at 0.18-0.22 (ASTM D1894).
Back Side
Mirror satin construction with identical float geometry. The reverse surface maintains equivalent smoothness rating of 4.5/5 on AATCC hand feel standard. Enables reversible garment construction without lining requirements.
03
MECHANICAL PERFORMANCE
Elongation at Break (Warp)
28% +-3%
ASTM D5034
Elongation at Break (Weft)
42% +-4%
ASTM D5034
Tensile Strength (Warp)
48 kgf
ASTM D5034
Tensile Strength (Weft)
36 kgf
ASTM D5034
Tear Strength
2.8 kgf (Warp) / 3.2 kgf (Weft)
ASTM D1424
Seam Slippage
≤ 1.5 mm @ 10 lbf
ASTM D434
04
DIMENSIONAL STABILITY
≤1.2%
Shrinkage (Warp) after 5 washes
AATCC 135
≤1.5%
Shrinkage (Weft) after 5 washes
AATCC 135
Grade 4
Colorfastness to Washing
AATCC 61
Grade 4-5
Colorfastness to Crocking
AATCC 8
Grade 4
Colorfastness to Light (20 hrs)
AATCC 16
Grade 4
Pilling Resistance
ASTM D3512
05
APPLICATION MATRIX
Apparel
Blazers | Trousers | Skirts | Dresses | Shirts | Qipao | Neo-Chinese garments | Evening wear | Loungewear | Pajama sets | Performance costumes
Home Textiles
Bedding sets | Pillowcases | Decorative cushions | Drapes | Table linens | Slipcovers
Accessories
Scarves | Headwear | Bags | Belt components | Hair accessories | Gift box linings
06
CARE PROTOCOL
Machine wash cold, gentle cycle
Do not exceed 30°C water temperature
Low heat tumble dry or line dry
Cool iron (max 110°C) if needed
Avoid bleach and fabric softeners
Dry in shade, avoid direct sunlight
